Unit Heaters
Ultra
Article no.:
154000853058
List price
2,603.00 €
plus VAT
Overview
- Continuously variable EC single-phase whisper-quiet sickle-blade fan (see Fig.)
- High-efficiency due to the aerodynamic design of the rotor housing
- Motor protection class IP 54
- According to DIN ISO 21940-11 for the corresponding fan category; the external rotor motor integrated in the fan impeller is balanced according to ISO 14694
- External rotor motor integrated in the fan impeller
- Complies with Directive (EU) 327/2011 ("LOT 11")
- Heating: low-temperature version for operation with very low water temperatures
- Cooling: highest possible cooling output even with dry cooling by means of round large-surface heat exchanger
Ultra-efficient as a component in a hybrid system: while the Ultra has decentralised temperature control, an air handling unit with small dimensions deals with ventilation and heat recovery. This saves operating costs as all components only work when demand is detected. And you benefit from the reduced size of the air handling unit in terms of investment and installation.
- Ease of access by snap-lock quick-release closure and positioning aid
- External pump sump for visual control through the outlet grille
- Float switch easily accessible – without the need to dismantle the base and condensation tray
- Energy-saving condensate pump even more powerful and quieter with a delivery height of up to 8 m
- Controlled flow of residual water during maintenance – outlet connector in the pump sump
Housing with base cover easily removable for maintenance
The air flows out through six air discharge openings and is guided through air guidance fins. A grid defines their adjustment into six positions.
Accessories
Control accessories electromechanical 230 V
Room thermostat
Heating/Cooling, 2- and 4-pipe, 3-stage. Only in conjunction with valves/valve kits with actuator, with OFF/Manual/Automatic fan switchover, 230 V AC, Open/Closed, Surface-mounted, Protection class II, Protection class IP 30, Temperature setting range 5 - 30 °C, Colour similar to RAL 9010 pure white, Type 30155
optional connectible, remote sensor art. no. 196000148921
can optionally be connected, clip-on sensor art. no. 196000148922
Suitable for: EC units electromechanical, 5 Katherm HK Trench Technology, 5 TOP, Ultra or Ultra Allround Unit Heaters, 5 Venkon or PowerKon LT Fan Coils, 5 KaCool D AF, KaCool W or KaDeck Fan Coils
optional connectible, remote sensor art. no. 196000148921
can optionally be connected, clip-on sensor art. no. 196000148922
Suitable for: EC units electromechanical, 5 Katherm HK Trench Technology, 5 TOP, Ultra or Ultra Allround Unit Heaters, 5 Venkon or PowerKon LT Fan Coils, 5 KaCool D AF, KaCool W or KaDeck Fan Coils
Article no.:
196000030155
List price
262.00 €
plus VAT
Clock thermostat
Heating/Cooling, 2- and 4-pipe, continuously variable, with LCD operating menu and integrated timer program, 230 V AC, 1 W, flush-mounted, Protection class II, Protection class IP 30, Colour similar to RAL 9010 pure white, Type 30256
optional connectible, remote sensor art. no. 196000148921
can optionally be connected, clip-on sensor art. no. 196000148922
Suitable for: EC units electromechanical, 5 TOP, Ultra or Ultra Allround Unit Heaters, 5 Venkon Fan Coils, 5 KaCool D AF, KaCool W or KaDeck Fan Coils
optional connectible, remote sensor art. no. 196000148921
can optionally be connected, clip-on sensor art. no. 196000148922
Suitable for: EC units electromechanical, 5 TOP, Ultra or Ultra Allround Unit Heaters, 5 Venkon Fan Coils, 5 KaCool D AF, KaCool W or KaDeck Fan Coils
Article no.:
196000030256
List price
416.00 €
plus VAT
Speed controller
continuously variable fan operation, 0-100% presettable, On/Off via room thermostat, surface-mounted protection class IP 54, flush-mounted protection class IP 44, 230 V AC, 0-100%, Surface-mounted, Protection class IP 54, Colour similar to RAL 9010 pure white, made of plastic, Type 30510
Suitable for: EC units electromechanical, 2 ProtecTor Door Air Curtains, 5 UniLine or Tandem Door Air Curtains, 10 TOP or Ultra Unit Heaters, 10 Venkon Fan Coils, 2 KaCool D AF or KaCool W AC Fan Coils
Suitable for: EC units electromechanical, 2 ProtecTor Door Air Curtains, 5 UniLine or Tandem Door Air Curtains, 10 TOP or Ultra Unit Heaters, 10 Venkon Fan Coils, 2 KaCool D AF or KaCool W AC Fan Coils
Article no.:
196000030510
List price
217.00 €
plus VAT
Electronic speed controller
microprocessor-controlled control with integrated digital timer, with day, night, week programme, continuously variable fan operation 0 to 100 %, manual or automatic, 0-10 VDC, recirculation air, 230 V AC, Protection class I, Protection class IP 40, including sensor IP 66, Type 30515
Suitable for: EC units electromechanical, 10 TIP, TOP or Ultra Unit Heaters, 10 Venkon Fan Coils, 5 KaCool D AF or KaCool W Fan Coils
Suitable for: EC units electromechanical, 10 TIP, TOP or Ultra Unit Heaters, 10 Venkon Fan Coils, 5 KaCool D AF or KaCool W Fan Coils
Article no.:
196000030515
List price
633.00 €
plus VAT
Thermostats
Room thermostat
with thermal feedback, 230 V AC, Surface-mounted, Protection class IP 30, Temperature setting range 5 - 30 °C, Colour similar to RAL 9010 pure white, Type 30055
Suitable for: Unit Heaters
Suitable for: Unit Heaters
Article no.:
196000030055
List price
65.00 €
plus VAT
Industrial thermostat
with setpoint adjustment by tool, with setpoint adjustment by tool, Protection class I, Protection class IP 54, Temperature setting range 5 - 30 °C, Type 30058
Suitable for: ProtecTor Door Air Curtains, Unit Heaters
Suitable for: ProtecTor Door Air Curtains, Unit Heaters
Article no.:
196000030058
List price
162.00 €
plus VAT
Industrial thermostat
with setpoint adjustment using a dial, with setpoint adjustment using a dial, Protection class I, Protection class IP 54, Temperature setting range 40 °C, Type 30059
Suitable for: ProtecTor Door Air Curtains, Unit Heaters
Suitable for: ProtecTor Door Air Curtains, Unit Heaters
Article no.:
196000030059
List price
162.00 €
plus VAT
Clock thermostat
with integral digital timer, with day/night/week programme, with night setback, Protection class IP 20, Temperature setting range 5 - 40 °C, Colour similar to RAL 9010 pure white, Type 30056
Suitable for: Unit Heaters
Suitable for: Unit Heaters
Article no.:
196000030056
List price
517.00 €
plus VAT
Valves

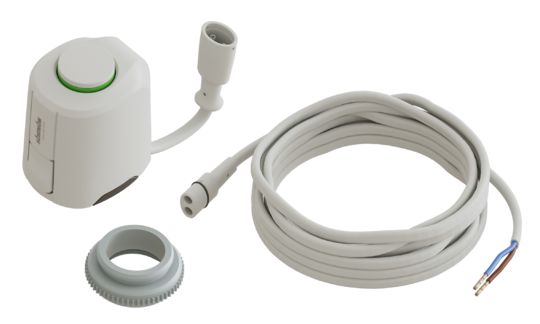

Thermoelectric shut-off valve
as a straight valve body with thermoelectric actuator 230 V / 50 Hz, 230 V AC, Connection 1'', kvs value 3.3 m³/h, Max. operating pressure 10 bar, Type 30911
Suitable for: all unit heaters
Suitable for: all unit heaters
Article no.:
196000030911
List price
162.00 €
plus VAT
Control shut-off valve
for automatic flow and temperature control, 230 V AC, Connection 1'', kvs value 3.1 m³/h, Max. operating pressure 25 bar, Type 30950
Suitable for: Model size 4 - 5, TOP or Ultra Unit Heaters, Flow volume Cooling (min./max.) 250 - 1800 l/h, DN 20
Suitable for: Model size 4 - 5, TOP or Ultra Unit Heaters, Flow volume Cooling (min./max.) 250 - 1800 l/h, DN 20
Article no.:
196000030950
List price
252.00 €
plus VAT
Control shut-off valve
for automatic flow and temperature control, 230 V AC, Connection 1'', kvs value 4.1 m³/h, Max. operating pressure 25 bar, Type 30951
Suitable for: Model size 4 - 6, TOP or Ultra Unit Heaters, Flow volume Cooling (min./max.) 400 - 2500 l/h, DN 25
Suitable for: Model size 4 - 6, TOP or Ultra Unit Heaters, Flow volume Cooling (min./max.) 400 - 2500 l/h, DN 25
Article no.:
196000030951
List price
355.00 €
plus VAT
Repair switch
Repair switch
Enables individual units in a switching group to be decommissioned by voltage disconnection. The thermal contacts are bridged in advance, and subsequently opened on the motor side so that the other units in the group can continue to operate without interruption., EC, Protection class IP 65, 25 A, supplied separately, Type 30160
Suitable for: all unit heaters, air curtains with EC-motors
Suitable for: all unit heaters, air curtains with EC-motors
Article no.:
196000030160
List price
103.00 €
plus VAT
Filter
calculation-relevant accessory
Recirculating air filter element
calculation-relevant accessory
for direct mounting on the unit inlet with recirculation air units, ISO Coarse 45% (G3) filter
Cannot be used with under-ceiling units!
Suitable for: Model size 85
Cannot be used with under-ceiling units!
Suitable for: Model size 85
Article no.:
154000065050
List price
90.00 €
plus VAT
Panel/grille
Recirculating air grille
Grid dimensions 625 x 625 mm, powder coated, Colour RAL 9016 traffic-white
Suitable for: Model size 73 - 96
Suitable for: Model size 73 - 96
Article no.:
154000060988
List price
675.00 €
plus VAT
Components for installation in acoustic grid suspended ceilings
Connection frame
square, as a transition from the Ultra to the ongoing duct system, sendzimir galvanised
Suitable for: Model size 85, attachment parts with outside frame dimensions (W x H): 600 x 600mm and 600 x 350mm
Suitable for: Model size 85, attachment parts with outside frame dimensions (W x H): 600 x 600mm and 600 x 350mm
Article no.:
198000065002
List price
168.00 €
plus VAT
90-degree reducing elbow
extended, square to rectangular, sendzimir galvanised
Suitable for: Model size 85, attachment parts with outside frame dimensions (W x H): 600 x 600mm and 600 x 350mm
Suitable for: Model size 85, attachment parts with outside frame dimensions (W x H): 600 x 600mm and 600 x 350mm
Article no.:
198000065104
List price
291.00 €
plus VAT
90-degree air intake elbow
with air intake grille, mounting for filter insert, rectangular, ISO Coarse 45% (G3) filter
Suitable for: Model size 85 - 96, attachment parts with outside frame dimensions (W x H): 600 x 350mm and 700 x 350mm
Suitable for: Model size 85 - 96, attachment parts with outside frame dimensions (W x H): 600 x 350mm and 700 x 350mm
Article no.:
198000060105
List price
645.00 €
plus VAT
90° air intake bend with differential pressure switch
with intake grille, filter insert and differential pressure switch for filter monitoring, rectangular, ISO Coarse 45% (G3) filter
Suitable for: Model size 85 - 96
Suitable for: Model size 85 - 96
Article no.:
198000060105D0
List price
949.00 €
plus VAT
Filter insert
complete with filter, ISO Coarse 45% (G3) filter
For mixed air units: 60117, 60118 and 60205.
Suitable for: Model size 85 - 96, Ultra Unit Heaters
For mixed air units: 60117, 60118 and 60205.
Suitable for: Model size 85 - 96, Ultra Unit Heaters
Article no.:
198000060126
List price
200.00 €
plus VAT
Replacement filter
for filter insert, ISO Coarse 45% (G3) filter, 1 set = 5 piece(s)
For mixed air units: 60117, 60118 and 60205.
Suitable for: Model size 85 - 96, Ultra Unit Heaters
For mixed air units: 60117, 60118 and 60205.
Suitable for: Model size 85 - 96, Ultra Unit Heaters
Article no.:
198000060127
List price
66.00 €
plus VAT
Additional colours
surcharge for RAL colour of your choice
matt gloss level
Price per unit.
Suitable for: Ultra Unit Heaters
Price per unit.
Suitable for: Ultra Unit Heaters
Article no.:
154007010022
List price
823.00 €
plus VAT
