Trench Technology
Katherm NK
Article no.:
145301511439
List price
1,905.00 €
plus VAT
Overview
Primary air or fresh air is introduced into the rooms through special supply air ducts. The Katherm supply air module ZL is available for all trench systems. It is a 400 mm long trench, which can be fitted to all designs of Katherm units.
- For stable installation within screeded and raised floors (standard)
- To allow continuous grille appearance
- As visual cover and protection against ingress of dirt
- To match grille finish
- For stable installation within screeded and raised floors
The Eurokonus valve connection enables the Katherm NK to be quickly and easily installed on site. In addition, height adjustment feet and raised floor height adjustment feet are supplied as standard to further reduce the installation time and thus the cost.
Calculate performance data
EPD data
Item number-specific LCA data based on verified EPD according to EN 15804, which is available for download at The International EPD System. Separate subdivision of life cycle modules available online via button "EPD data sheet". The environmental impacts of module B refer to 1 year of operation. A: Product and construction process stage - B: Use stage - C: End of life stage - D: Benefits and loads beyond the system boundary
| Impact Category | A | B | C | D |
|---|---|---|---|---|
| GWP - Fossil | kg CO₂ eq | 1.25E+02 | 1.96E+00 | 2.63E+00 | -4.37E+01 |
| GWP - Biogenic | kg CO₂ eq | -2.31E+00 | 2.54E-02 | 1.06E-03 | -1.79E-02 |
| GWP - Luluc | kg CO₂ eq | 1.42E+00 | 5.71E-02 | 1.12E-04 | -2.37E-01 |
| GWP - Total | kg CO₂ eq | 1.24E+02 | 2.04E+00 | 2.63E+00 | -4.41E+01 |
| ODP | kg CFC-11 eq | 1.01E-05 | 1.37E-07 | 5.03E-08 | -2.66E-06 |
| AP | mol H+ eq | 1.27E+00 | 8.21E-02 | 1.20E-03 | -6.36E-01 |
| EP - Freshwater | kg P eq | 1.12E-01 | 6.44E-03 | 2.81E-05 | -5.41E-02 |
| EP - Marine | kg N eq | 1.39E-01 | 5.06E-03 | 4.12E-04 | -5.54E-02 |
| EP - Terrestrial | mol N eq | 1.49E+00 | 6.38E-02 | 4.46E-03 | -6.53E-01 |
| POCP | kg NMVOC | 4.40E-01 | 1.58E-02 | 1.08E-03 | -1.88E-01 |
| ADPE | kg Sb eq | 1.64E-02 | 1.95E-03 | 5.44E-07 | -1.19E-02 |
| ADPF | MJ | 1.69E+03 | 3.25E+01 | 3.51E+00 | -5.19E+02 |
| WDP | m³ depriv. | 2.90E+01 | 1.66E+00 | 7.30E-02 | -1.01E+01 |
| PM | disease inc. | 8.91E-06 | 2.01E-07 | 2.27E-08 | -3.33E-06 |
| IR | kBq U-235 eq | 2.02E+01 | 6.44E-01 | 1.72E-02 | -3.87E+00 |
| ETP - FW | CTUe | 7.74E+03 | 6.64E+02 | 3.47E+00 | -4.89E+03 |
| HTP - C | CTUh | 5.97E-07 | 1.53E-08 | 3.97E-10 | -2.60E-07 |
| HTP - NC | CTUh | 1.23E-05 | 1.06E-06 | 4.50E-09 | -7.40E-06 |
| SQP | Pt | 8.28E+02 | 4.16E+01 | 5.86E+00 | -2.64E+02 |
| PERE | MJ | 4.80E+02 | 7.62E+00 | 5.64E-02 | -8.31E+01 |
| PERM | MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| PERT | MJ | 4.80E+02 | 7.62E+00 | 5.64E-02 | -8.31E+01 |
| PENRE | MJ | 1.69E+03 | 3.25E+01 | 3.51E+00 | -5.19E+02 |
| PENRM | MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| PENRT | MJ | 1.69E+03 | 3.25E+01 | 3.51E+00 | -5.19E+02 |
| SM | kg | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| RSF | MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| NRSF | MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| FW | m³ | 8.76E-01 | 5.66E-02 | 3.24E-03 | -3.70E-01 |
| HWD | kg | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| NHWD | kg | 5.89E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| RWD | kg | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| CRU | kg | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| MFR | kg | 0.00E+00 | 0.00E+00 | 1.80E+01 | 0.00E+00 |
| MER | kg | 0.00E+00 | 0.00E+00 | 9.39E-01 | 0.00E+00 |
| EE (Electrical) | MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| EE (Thermal) | MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| *GWP-GHG | kg CO₂ eq | 1.22E+02 | 1.98E+00 | 2.63E+00 | -4.23E+01 |
Accessories
Thermostats

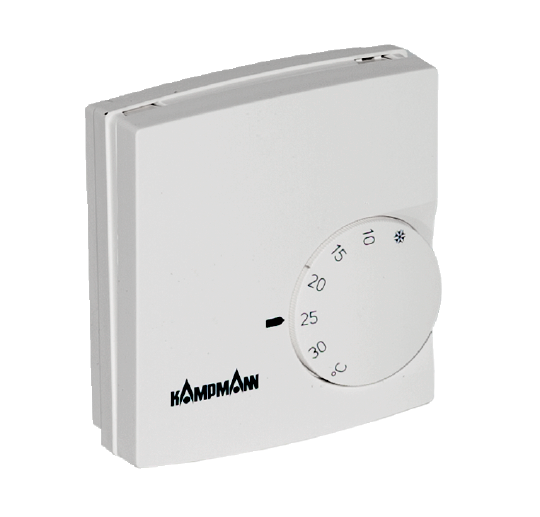

Room thermostat
with thermal feedback, 230 V AC, Surface-mounted, Protection class IP 30, Temperature setting range 5 - 35 °C, Colour white, Type 146904
Article no.:
194000146904
List price
74.00 €
plus VAT

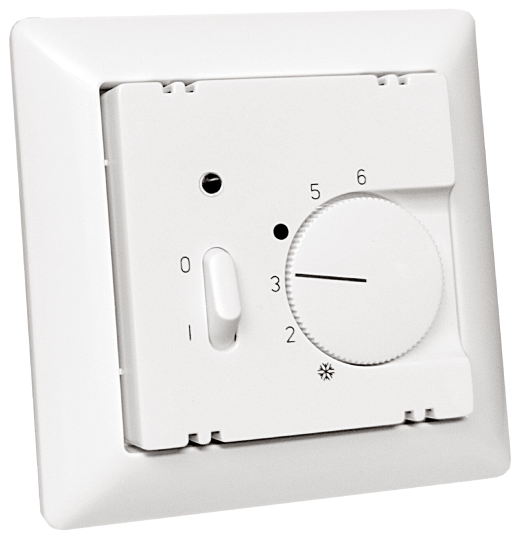

Room thermostat
with thermal feedback, 230 V AC, AC, flush-mounted, Protection class II, Protection class IP 30, Temperature setting range 5 - 30 °C, Colour alpine white, Type 146927
Suitable for: Jung system
Suitable for: Jung system
Article no.:
194000146927
List price
291.00 €
plus VAT

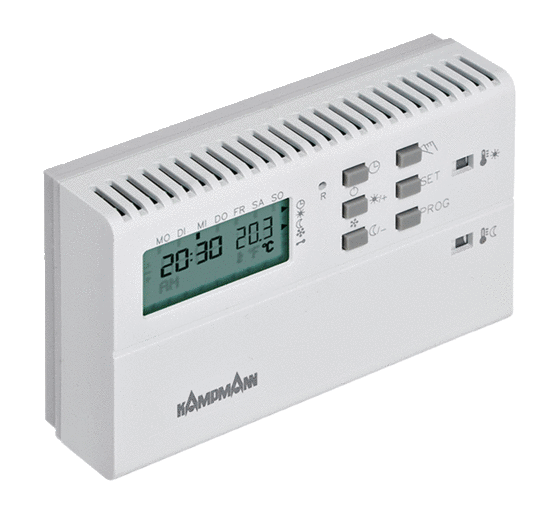

Clock thermostat
with day/night/week programme, 230 V AC, Surface-mounted, Protection class IP 20, Temperature setting range 10 - 30 °C, Colour white, Type 146910
Article no.:
194000146910
List price
421.00 €
plus VAT

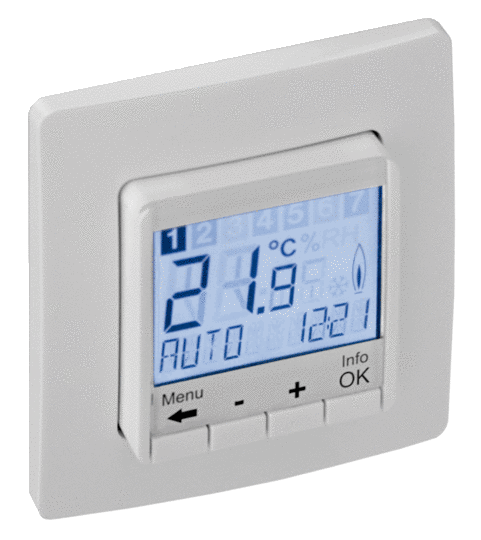

Clock thermostat
230 V AC, flush-mounted, Protection class IP 30, Temperature setting range 5 - 30 °C, Colour white, Type 146933
Article no.:
194000146933
List price
323.00 €
plus VAT
Valve kits

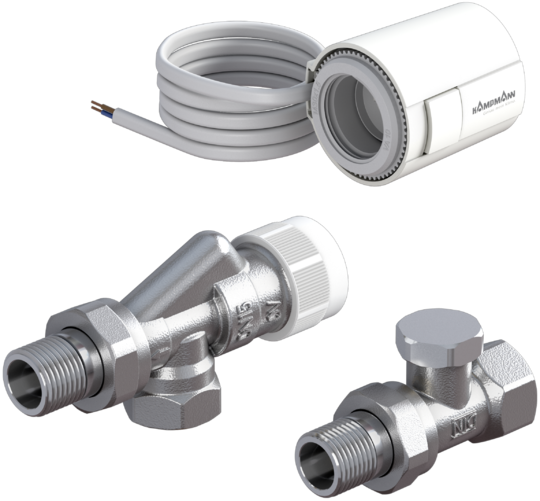

Valve kit
includes 1 no. pre-settable valve body, axial, 1 no. thermoelectric actuator 230 V, 1 no. return shut-off valve, straight, 230 V actuator, Connection 1/2''
Article no.:
194000145965
List price
144.00 €
plus VAT

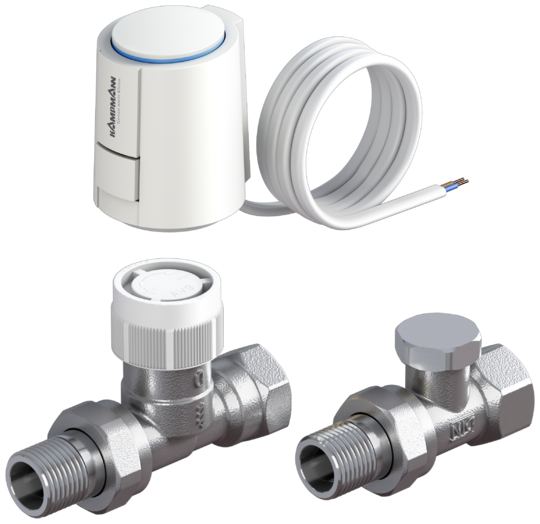

Valve kit
includes 1 no. pre-settable valve body, straight, 1 no. thermoelectric actuator 230 V, 1 no. return shut-off valve, straight, 230 V actuator, Connection 1/2''
Article no.:
194000145966
List price
144.00 €
plus VAT
Valves and return shut-off valves

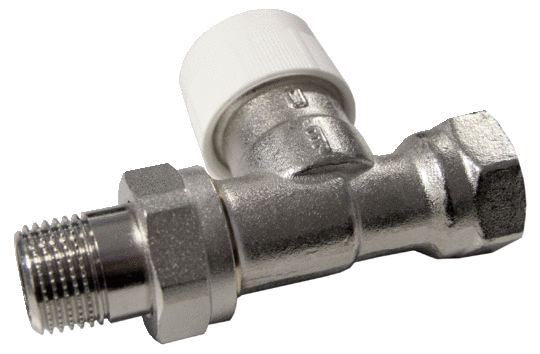

Valve body
straight, pre-settable, Connection 1/2'', kvs value 1 m³/h, Max. operating pressure 10 bar
Suitable for: Katherm NK 182 (trench heights 150 mm and 200 mm), Katherm NK 232/300/380 (all trench heights), DN 15
Suitable for: Katherm NK 182 (trench heights 150 mm and 200 mm), Katherm NK 232/300/380 (all trench heights), DN 15
Article no.:
194000346909
List price
39.00 €
plus VAT
Pre-setting key
Once per project necessary.
Suitable for: pre-settable valve bodies, valve kits and convector connection kit
Suitable for: pre-settable valve bodies, valve kits and convector connection kit
Article no.:
194000346915
List price
7.00 €
plus VAT
Return shut-off valve
Straight, Connection 1/2''
Article no.:
194000145952
List price
21.00 €
plus VAT
Valve actuators
Thermoelectric actuator
230 V AC
Suitable for: room thermostat type 30155 and climate controller type 14894x
Suitable for: room thermostat type 30155 and climate controller type 14894x
Article no.:
194000146905
List price
84.00 €
plus VAT

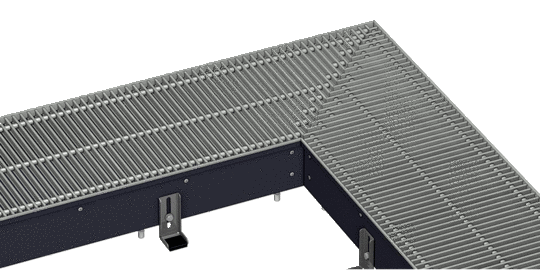

Mitred corners
Mitred corner
Roll-up grille Aluminium, natural anodised, 90 degrees, Bar depth 5 mm, Bar height 18 mm, Bar spacing 9 mm, Free area, approx. 65 %
Suitable for: Width 300 mm, Height 150 mm
Suitable for: Width 300 mm, Height 150 mm
Article no.:
194000145532
List price
928.00 €
plus VAT
Mitred corner
Roll-up grille Aluminium, natural anodised, other angles, Bar depth 5 mm, Bar height 18 mm, Bar spacing 9 mm, Free area, approx. 65 %
Suitable for: Width 300 mm, Height 150 mm
Suitable for: Width 300 mm, Height 150 mm
Article no.:
194000145632
List price
1,071.00 €
plus VAT
Installation covers
Installation cover
to protect trench during installation, factory-fitted, grilles are packed separately
price per m
price per m
Article no.:
194000100930
List price
21.00 €
plus VAT
Downloads
Declarations/Certificates
Certificate ISO 50001:2018
PDF
(194 kB)
Certificate ISO 9001:2008
PDF
(118 kB)
Digital EPD database Katherm NK
EPD Katherm NK
PDF
(2.6 MB)
EU Declaration of Conformity for Katherm NK, Katherm QL, Katherm ID
PDF
(457 kB)
Cross-product information
Products
PDF
(17.9 MB)
Convection and Radiation
PDF
(1.2 MB)
Trench Technology – For a comfortable room climate
PDF
(6.7 MB)
Kampmann hotel references
PDF
(6.2 MB)
Information sheet DIN EN 16430 for trench heaters
PDF
(683 kB)
Overview Katherm supply air versions
PDF
(4 MB)
Installation plans
Katherm NK, electromechanical control
PDF
(558 kB)
Technical catalogues
Katherm NK trench heating
PDF
(12.4 MB)
BIM data (Building Information Modeling)
Kampmann Group BIM data
Manuals
Katherm NK trench heating
PDF
(3.3 MB)
CAD-Drawings
Katherm NK, trench width 300 mm, trench height 150 mm, cross sections, views
PDF
(66 kB)
Katherm NK, trench width 300 mm, trench height 150 mm, cross sections, views
DWG
(292 kB)
Katherm NK, trench width 300 mm, trench height 150 mm, cross sections, views
DXF
(1022 kB)
Katherm NK, trench width 300 mm, trench height 150 mm, trench lengths 800 - 3200 mm, top views
PDF
(88 kB)
Katherm NK, trench width 300 mm, trench height 150 mm, trench lengths 800 - 3200 mm, top views
DWG
(182 kB)
Katherm NK, trench width 300 mm, trench height 150 mm, trench lengths 800 - 3200 mm, top views
DXF
(3.7 MB)
