Heat pumps and chillers

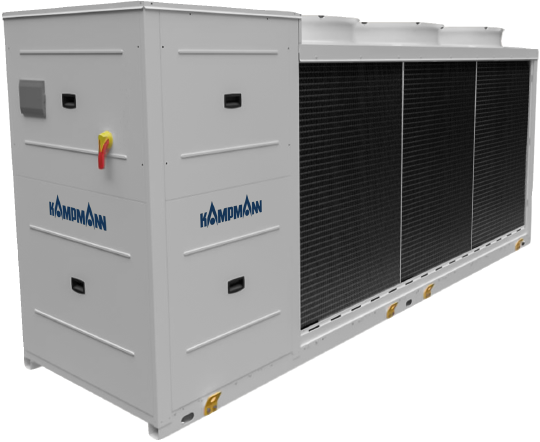

KaClima XL
Climate solution for an output range of 113 - 226 kW.
Overview
Our air conditioning solution, which was specifically developed for cold climate zones, stands out with its impressive output at low temperatures. It enables the units to be flexibly extended and achieves an output of up to 1,864 kW. Thanks to our precise control of the supply temperature, we also ensure the reliable and consistent output of the connected units. You can also rely at any time on seamless fluctuation-free operation.
Our air conditioning solution is filled with the “low GWP” (Low Global Warming Potential) refrigerant R32, which contains considerably fewer potent greenhouse gases. KaClima XL units use only small quantities of the refrigerant R32, which results in a significant reduction of the CO2 equivalent by up to 75% (compared to R410A) with the same cooling and heat output. R32 is flame-resistant and has a low GWP value of 675.
KaClima XL units were designed to have a space-saving design. All components are efficiently arranged, which is why the unit offers all the necessary features and output in spite of its minimal dimensions, without the need to make sacrifices.
Our air conditioning solution is quieter than most competitors in this performance class. We have attached specific value to this to offer you a pleasant and trouble-free air conditioning experience without unwanted noise disturbance.
- Continuously variable output adjustment of 20 to 100% output by the speed-controlled inverter-compressor
- Continuously variable EC fan
- Integrated Modbus RTU interface
- Water outlet temperature control for efficient heat or cooling distribution
- Outside temperature-based supply temperature, adjustable control (heating curve with heat pump function or cooling curve as a chiller)
- Separates the cooling circuit from the water/glycol circuit
- Provides for the efficient transfer of heat or cooling energy for optimum energy efficiency
- High heat transfer capacity results in maximum performance
- Made of AISI 316 with low refrigerant content and a large exchange surface
- Factory-fitted user interface, built-in master switch and safety valve
- Optionally with built-in efficient circulation pump
- Extensive additional accessories can be selected
- On-demand defrost control ensures proper operation and efficiency
- Hydrophilic "Blue Fin" aluminium slats facilitate the removal of condensate and improve defrosting
- Removes ice and frost
- Two separate cooling circuits guarantee excellent operational reliability
- Can be used at outside temperatures as low as -20 °C
- Water can be heated to up to 60 °C
- Heat recovery is optionally available in cooling mode
