Heat pumps and chillers

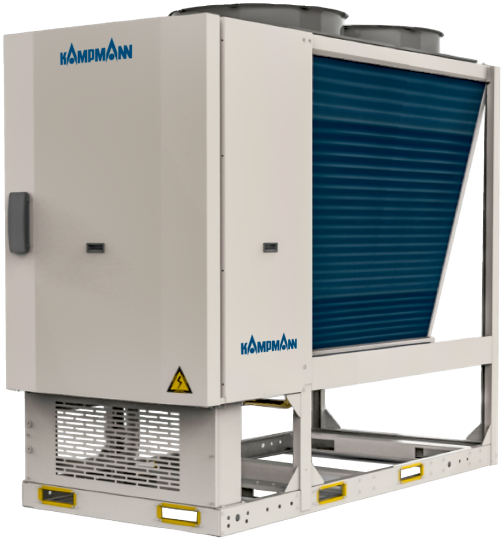

KaClima M
Climate solution for an output range of 35 - 85 kW.
Overview
Prepare for the future with our future-proof air conditioning solution, which uses the environmentally-friendly and natural refrigerant R290 (propane). Propane is characterised by its extremely low GWP value of only 3/kg. You also benefit from minimal quantities of refrigerant, which help to reduce the environmental impact. KaClima R290 units meet the requirements of the General Administration Regulation on the Procurement of Climate-friendly Services (AVV Klima).
Our units are extremely energy-efficient and were rated as energy efficiency class A++ to A+++ in accordance with the standards of EU Regulation 811/2013. This makes them extremely economical and enables you to reduce your electricity bills at the same time as protecting the environment.
Our units are characterised by their space-saving design in which the components are arranged particularly compactly. This gives you a unit with minimal dimensions without the need to forgo features or output. Make maximum use of the limited space without compromising.
You can also obtain our heat pump as a chiller with a free cooling option on request. It is therefore very flexible to use. It can be cascaded with prefabricated pipe sets for low installation costs and space requirements up to a capacity of 1,360 kW. Precise supply temperature control also ensures that consumer output remains reliable and constant. Put your trust in seamless fluctuation-free operation – day after day.
- Continuously variable output adjustment of 30 to 100% output by the speed-controlled inverter-compressor
- Continuously variable EC fan
- Integrated modbus RTU interface
- Optionally available remote interface for the functional extension of the external control options
- Water outlet temperature control for efficient heat or cooling distribution
- Noise-reduced operation can be adjusted between different stages
- Separates the cooling circuit from the water/glycol circuit
- Provides for the efficient transfer of heat or cooling energy for optimum energy efficiency
- High heat transfer capacity results in maximum performance
- Made of AISI 316 with low refrigerant content and a large exchange surface
- Factory fitted, user interface, safety valve and flow monitor
- Optionally with built-in efficient circulation pump
- Dirt trap and vibration damper are supplied separately for on-site installation before commissioning
- Extensive additional accessories can be selected
- On-demand defrost control ensures proper operation and efficiency
- Hydrophilic "Blue Fin" aluminium slats facilitate the removal of condensation and improve defrosting
- Removes ice and frost

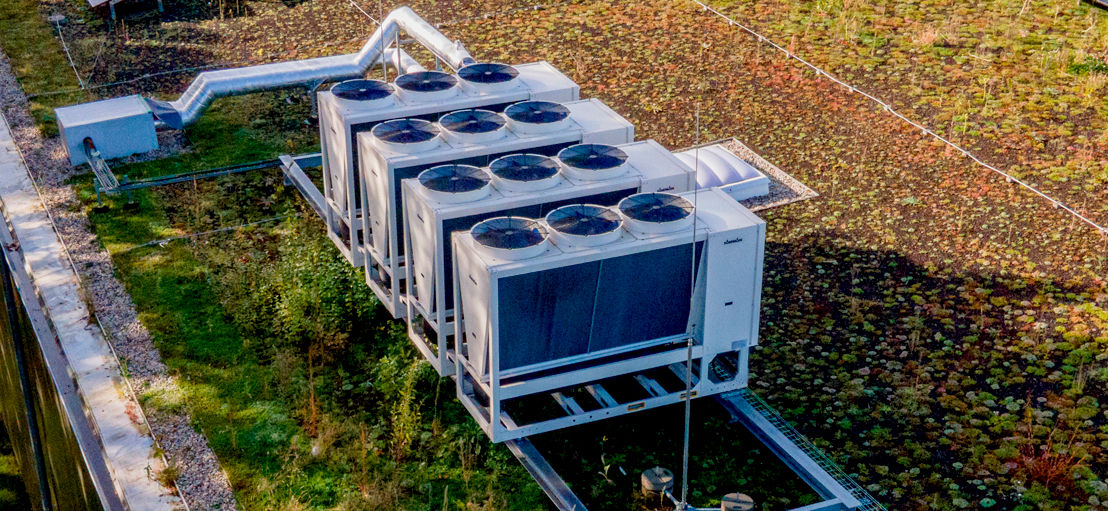

Up to 16 KaClima M units can be controlled together in a cascade
