Heat pumps and chillers

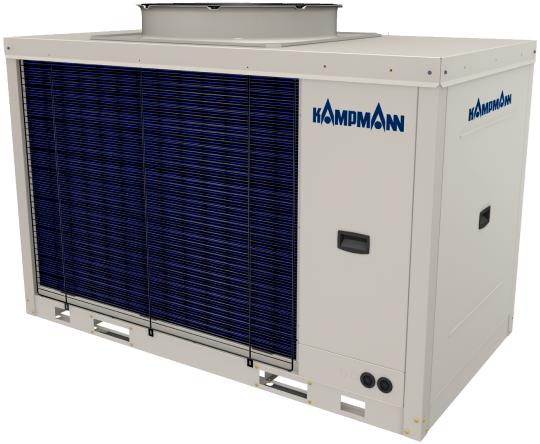

KaClima L
Climate solution for an output range of 22 - 98 kW.
Overview
You can actively contribute to environmental protection, thanks to our future-proof technology, by effectively reducing environmentally harmful F-gas. Our unit uses small quantities of the environmentally-friendly refrigerant R32, resulting in significant reduction of the CO2equivalent by up to 75% with a constant cooling and heat output. Select our sustainable solution and adopt an environmentally-friendly approach.
Our products are characterised by their excellent energy efficiency and meet the requirements of the EU Regulation 811/2013 with the best energy efficiency class of A++ to A+++. They therefore work extremely economically, result in savings to your electricity bills and also contribute to environmental protection.
Our climate solution was developed with a space-saving design in which the components are arranged efficiently and compactly. This results in a unit with minimal dimensions, which nonetheless uncompromisingly offers all the required features and output.
Our special air conditioning solution developed for cold climate zones stands out with its outstanding output at low temperatures. It enables the units to be flexibly extended and achieves an output of up to 1,470 kW. Thanks to our precise supply temperature control, we also guarantee the reliable and constant output of the connected consumers. Put your trust in seamless fluctuation-free operation – day after day.
- Continuously variable output adjustment of 30 to 100% output by the speed-controlled inverter-compressor
- Continuously variable EC fan
- Integrated Modbus RTU interface
- Water outlet temperature control for efficient heat or cooling distribution
- Outside temperature-based supply temperature, adjustable control (heating curve with heat pump function or cooling curve as a chiller)
- Noise-reduced operation can be adjusted between different stages
- Separates the cooling circuit from the water/glycol circuit
- Provides for the efficient transfer of heat or cooling energy for optimum energy efficiency
- High heat transfer capacity results in maximum performance
- Made of AISI 316 with low refrigerant content and a large exchange surface
- Factory fitted, user interface, safety valve and flow monitor
- Optionally with built-in efficient circulation pump
- Dirt trap supplied separately for on-site installation before commissioning
- Extensive additional accessories can be selected
- On-demand defrost control ensures proper operation and efficiency
- Hydrophilic "Blue Fin" aluminium slats facilitate the removal of condensate and improve defrosting
- Removes ice and frost
