Fan Coils

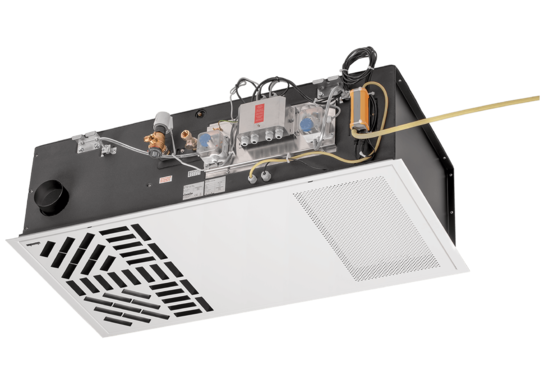

KaCool D HC
ceiling cassette for heating, cooling and filtering, DIN 1946-4-certified, designed for healthcare facilities
Overview

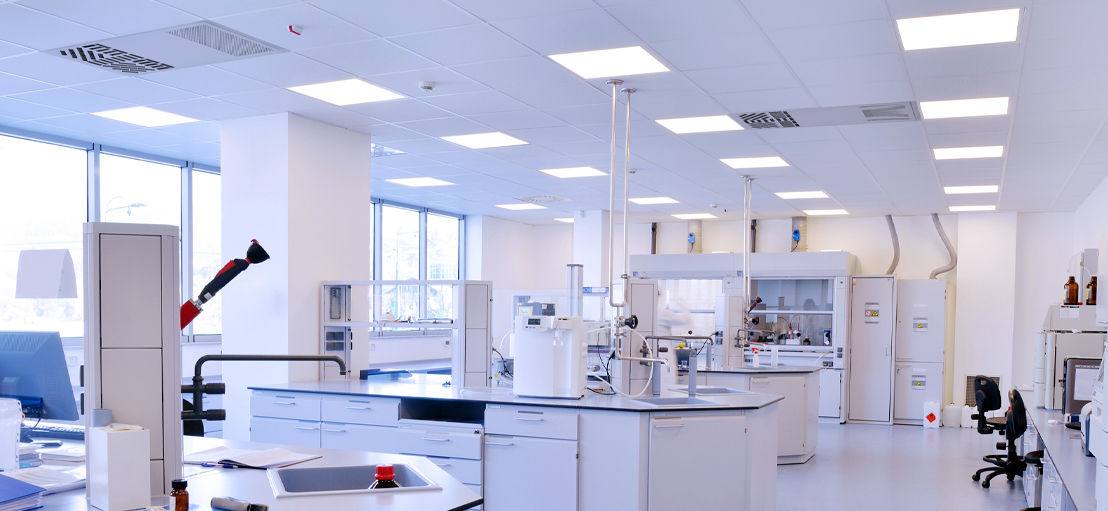

The KaCool DHC cassette fits discreetly into any building architecture and is suspended precisely within the grid dimensions of the suspended ceiling.
The secondary air unit is certified to DIN 1946-4. It therefore complies with hospital hygiene standards and can be used in healthcare buildings and rooms.
One of the major benefits of the product is its ease of cleaning without any sharp inner edges. The complete coating also prevents rust and ensures that the interior of the unit is also resistant to disinfectant.
An ePM1>55 % intake filter and an ePM1>85 % discharge filter are fitted on the unit. They are easy, fast and safe to change, thanks to magnetic rails. A Class 14 HEPA filter can also be fitted on request.
This is made possible by an integrated differential pressure sensor for filter monitoring. The unit thus signals the need for replacement at an early stage.
Heat Pump Ready
This product is suitable for use with a heat pump or other low temperature system. Reduce your energy requirements, operating costs and emissions with our Heat Pump ready range of products. And make you and your customers less dependent on fossil fuels.
We have appropriate heat pump solutions for many applications, from industrial sheds, office buildings, hotels to private homes.
→ Discover more
- Continuously variable EC single-phase radial fan
- Excellent efficiency through the use of GreenTech EC technology
- Motor protection class IP 54
- Compact construction and simple and compliant to clean
- Quiet operation thanks to optimised airflow guidance
- High-output copper/aluminium heat exchanger
- With high heat and cooling outputs
- Optimised in terms of air flow
- Visible from all sides and easy to clean
- Electrical connection freely accessible outside of the unit through the revision opening or suspended ceiling
- Including built-in differential pressure switches for filter monitoring
- Hygiene-compliant with DIN 1946-4 and VDI 6022
- Unit can be cleaned practically and simply without the need for a tool
- Disinfectant-resistant throughout
- Filter can be removed and replaced along magnetic rails
- The panel is foldable and fully coated in RAL 9016
- The exterior of condensate tray is fully vapour-diffusion-tight insulated
- A pre-assembled and wired condensate pump is fitted to the unit as standard
- Tray with gradient for continuous condensate discharge
- The wall-mounted Climate controllers feature a high-quality glass finish and capacitive buttons.
- A room temperature sensor is also permanently built in.
- If required, multiple messages on, for example, condensate, filter quality or error messages, can be evaluated via a modbus interface.
- A connection to the building management system for filter messages is also possible with many types.
