Perimeter Heating
PowerKon QE

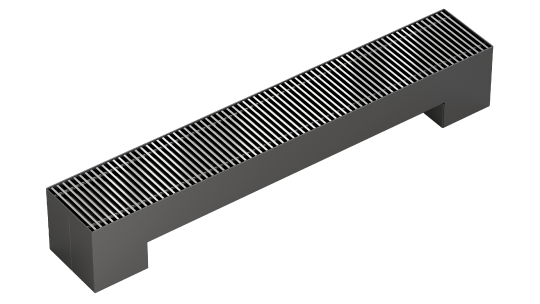

Free-standing convector with electric heating coil and tangential fan-assisted convection.
Overview
The PowerKon QE with electric heating coil offers the ideal solution when the use of a low pressure hot water convector is impossible. The high-output electric heating coil delivers high heat outputs in conjunction with fan assistance provided by the EC tangential fan.
The PowerKon QE fuses our market-leading underfloor output and design in a free-standing convector incorporating electric heating technology.
By means of the integrated lower control, control continuously variably by room thermostat or BMS – including 2-stage safety cut-out in the event of improper use. The integrated safety thermostats and temperature cut-outs enable low surface temperatures – giving you added safety.
Whether for new build or refurbishments: One width. One height. Three lengths – the PowerKon QE impresses with its compact strength. There is no need for more. Every convector is designed for heating and noise efficiency.
Combine the attractive casing colour DB 703 with attractive anodised aluminium coloured, stainless steel or brass Optiline grilles – for a stylish look.
The PowerKon QE represents an interesting statement feature in front of floor-to-ceiling glazed façades. The optimum solution wherever there is a need for attractive style features.
With integrated safety grille acting as a safety guard for the even flow of air through the heating coil, guaranteeing high heat outputs with low sound emissions, infinitely variable fan speed control via an external 0 – 10 V signal, motor monitoring with integrated fault processing
- To prevent contact, factory-fitted
- The grille can only be removed using a tool
- Stainless steel/zinc aluminium with continuously variable control of heating element and fan controlled by a 0-10 V signal
- As visual protection for the connections
- With integrated ventilation slots
- Protection class IP 65
- Heating element factory-wired into control unit
- With floor-side connection opening for the electrical connection
References
New HanseMerkur Versicherungsgruppe office building, Hamburg
New HanseMerkur Versicherungsgruppe office building, Hamburg
continueStadtwerke Traunreut, Traunreut
Stadtwerke Traunreut, Traunreut
continueKinderland Pustewind daycare centre, Dresden
Kinderland Pustewind daycare centre, Dresden
continueDownloads
Declarations/Certificates
Certificate ISO 50001:2018
PDF
(194 kB)
Certificate ISO 9001:2008
PDF
(118 kB)
Cross-product information
Products
PDF
(17.9 MB)
BIM data (Building Information Modeling)
Kampmann Group BIM data
Manuals
MA_PowerKon_QE_SAP1720507_EN
PDF
(2.5 MB)
PowerKon QE, brief instructions
PDF
(3.4 MB)
CAD-Drawings
PowerKon QE, Breite 205 mm,Höhe 200 mm, Längen 825-1700 mm, Abmessungen mm [Inch]
PDF
(323 kB)
PowerKon QE, Breite 205 mm,Höhe 200 mm, Längen 825-1700 mm, Abmessungen mm [Inch]
DWG
(970 kB)
