Diffusers
DRS

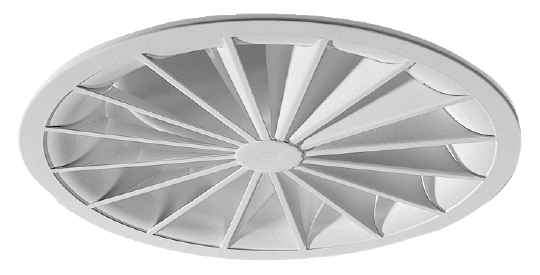

Highly inductive swirl diffuser with punched 45° shaped rigid air guidance fins and integrated outlet diffuser, round or square
Overview
The DRS is available in a round and square version and thus is flexible in terms of design. It is usually operated with a junction box, but solutions fitted directly to the end of the pipe are also possible.
The punched air guide fins split the air flow into a large number of individual highly inductive air streams. This generates a definite horizontal air stream, both when installed in the ceiling and also free-hanging.
- Occupied zones
- Offices and commercial buildings
- Laboratories
- Meeting rooms
- IT suites
- Department stores
- Constant and variable volumetric flow systems
- Preferably in rooms with room heights of 2.20 to 6 m with high cooling loads
The DRS can be supplied with a square or round front plate. A matching plenum box is available for both versions. The round DRS can be inserted visually perfectly within plasterboard ceilings. The square plates fit into standard ceiling grids.
Downloads
Declarations/Certificates
Certificate ISO 50001:2018
PDF
(194 kB)
Certificate ISO 9001:2008
PDF
(118 kB)
Manuals
DRS DIA ceiling diffusers
PDF
(941 kB)
BIM data (Building Information Modeling)
Revit data set for swirl diffuser DRS AK, “clamping flange” connection type
RFA
(1.7 MB)
Revit data set for swirl diffuser DRS KLFL “Clamping flange” connection type only 620
RFA
(1.7 MB)
Revit data set for swirl diffuser DRS AK, “box” connection type
RFA
(1.7 MB)
