KaControl MC
The Multi Connect Climate Control System
The new groundbreaking technology for integrating Kampmann products into buildings.
Your vision of smart room control – now a reality.
More comfort, maximum efficiency, and complete control: Our innovative KaControl MC climate control system opens up new possibilities for controlling and networking Kampmann products with building automation systems.
Configurable Room Operating Unit
The compact 2-inch color touchscreen display enables intuitive operation through familiar tap and swipe gestures. Thanks to the integrated temperature sensor and individually customizable menus, the control system is precisely tailored to your needs.
Compatibility with various switch programs and three selectable display background colors provide new options for seamless room integration.
Plug & Play Installation via Web Server
Each device is equipped with an integrated web server, which allows for convenient parameterization and operation in addition to the room operating unit. A guided quick configuration menu ensures effortless commissioning. Configure the device flexibly via laptop, smartphone, or directly at the room operating unit – via Wi-Fi or network cable.
CAN-Bus Technology
Operate up to ten devices per group* and benefit from:
Continuous data communication between all devices in a group
Cable lengths of up to 100 meters
Fault and communication monitoring for maximum operational reliability
Maximum flexibility in the room
Five flexibly configurable inputs on each device can be used for the entire group:
Window contacts, presence detectors
Room, supply air, intake, flow, return temperature sensors, etc.
In addition to the standard version with on/off valve outputs, the KaControl MC version with continuous valve outputs offers further possibilities for new applications:
Supply air temperature limitation as a comfort function
Return temperature control for integration into heating and cooling networks
Connectivity via license
Seamless integration into your building automation: With Modbus RTU, Modbus TCP, BACnet IP, and KNX, all common interfaces are always available as standard. The required communication protocol can be activated per device as a license during production or subsequently – for maximum flexibility in project execution.

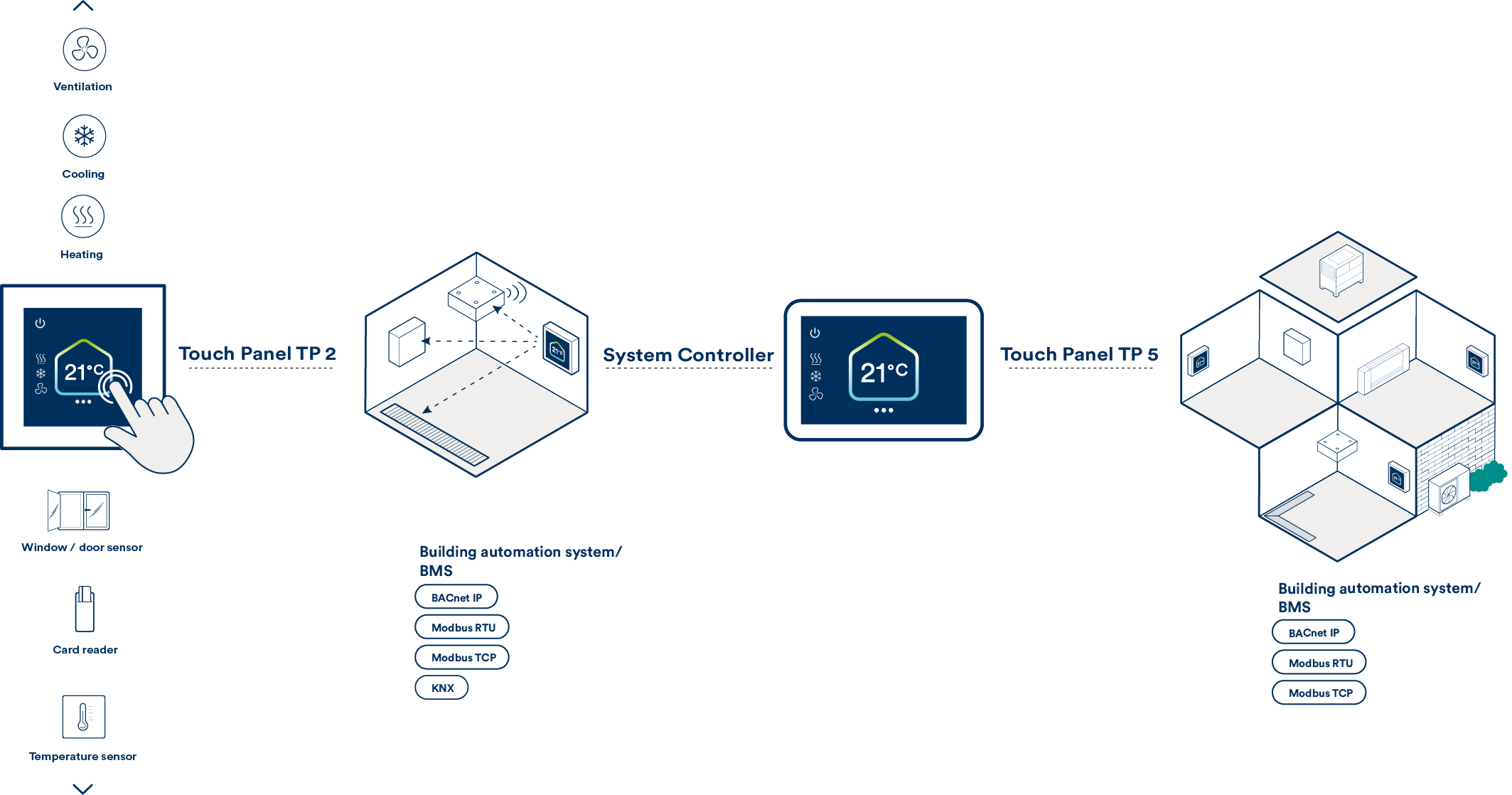

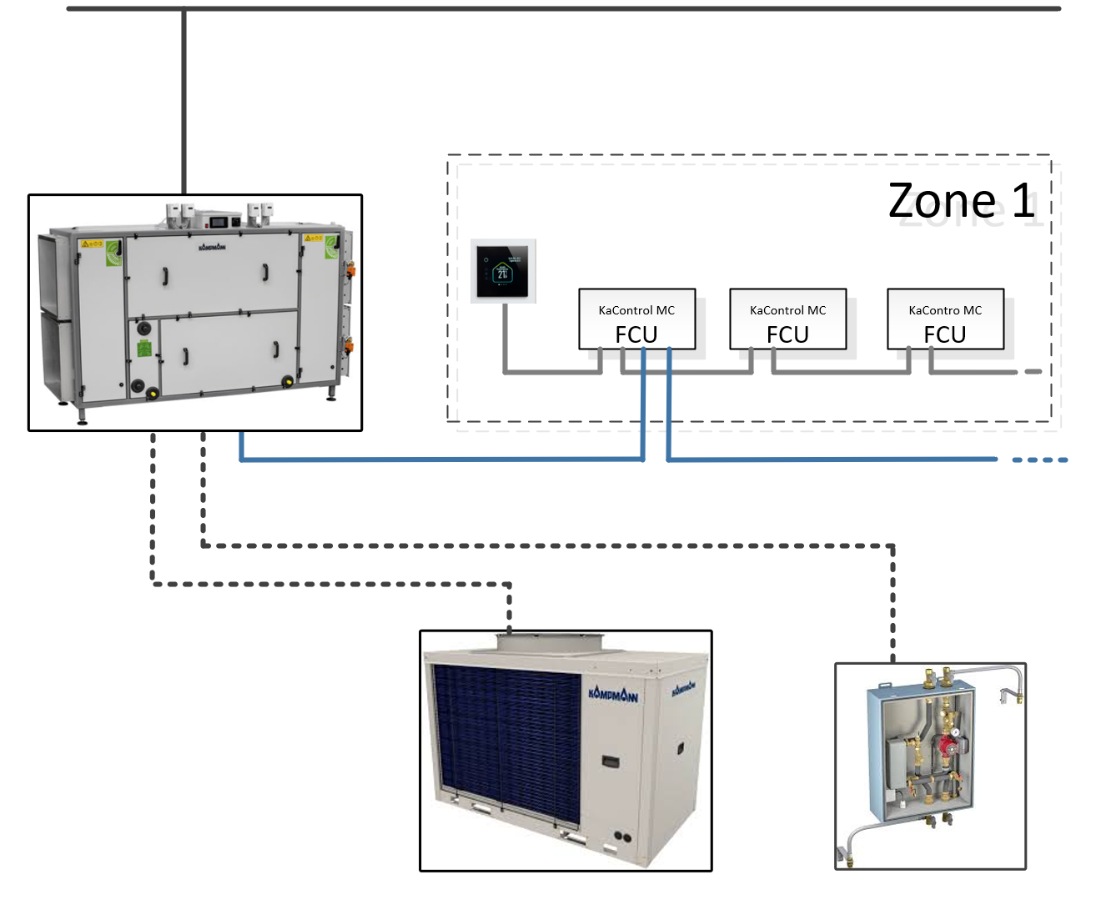

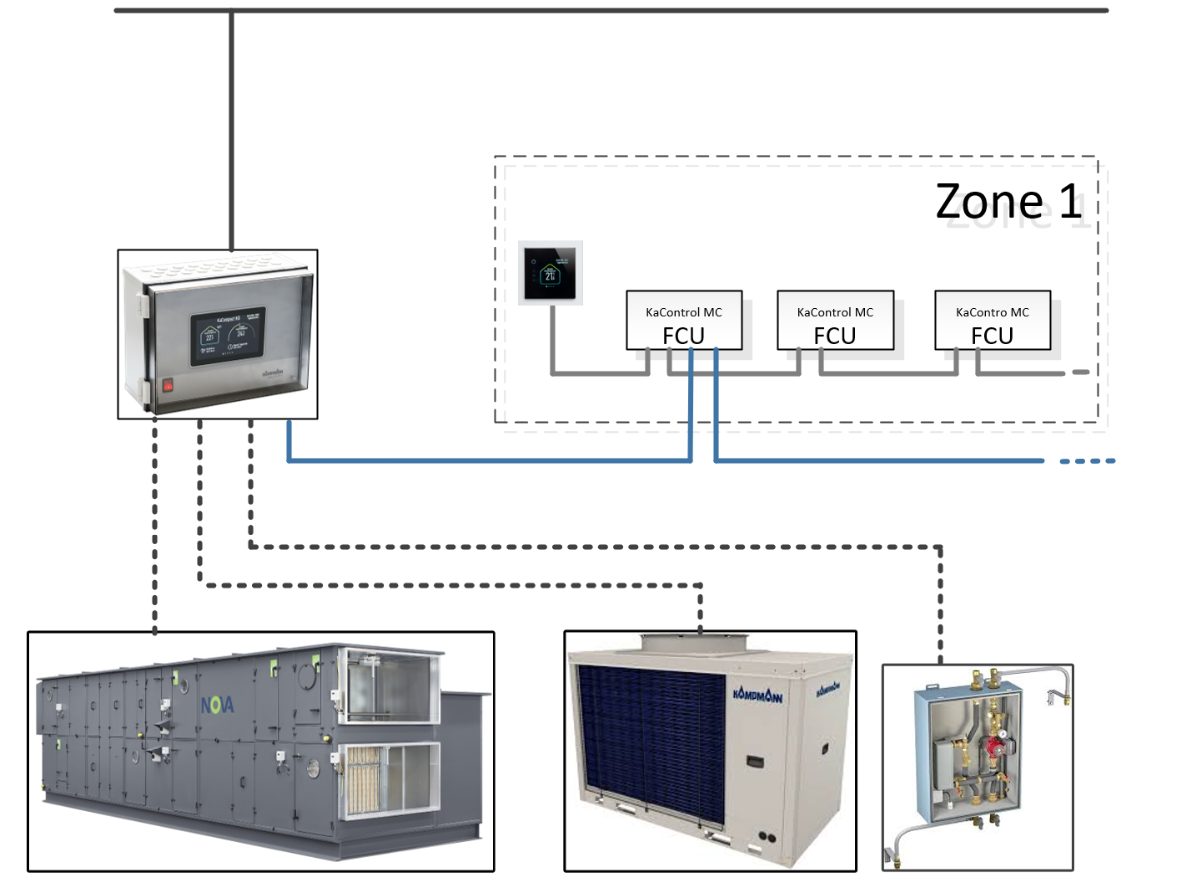

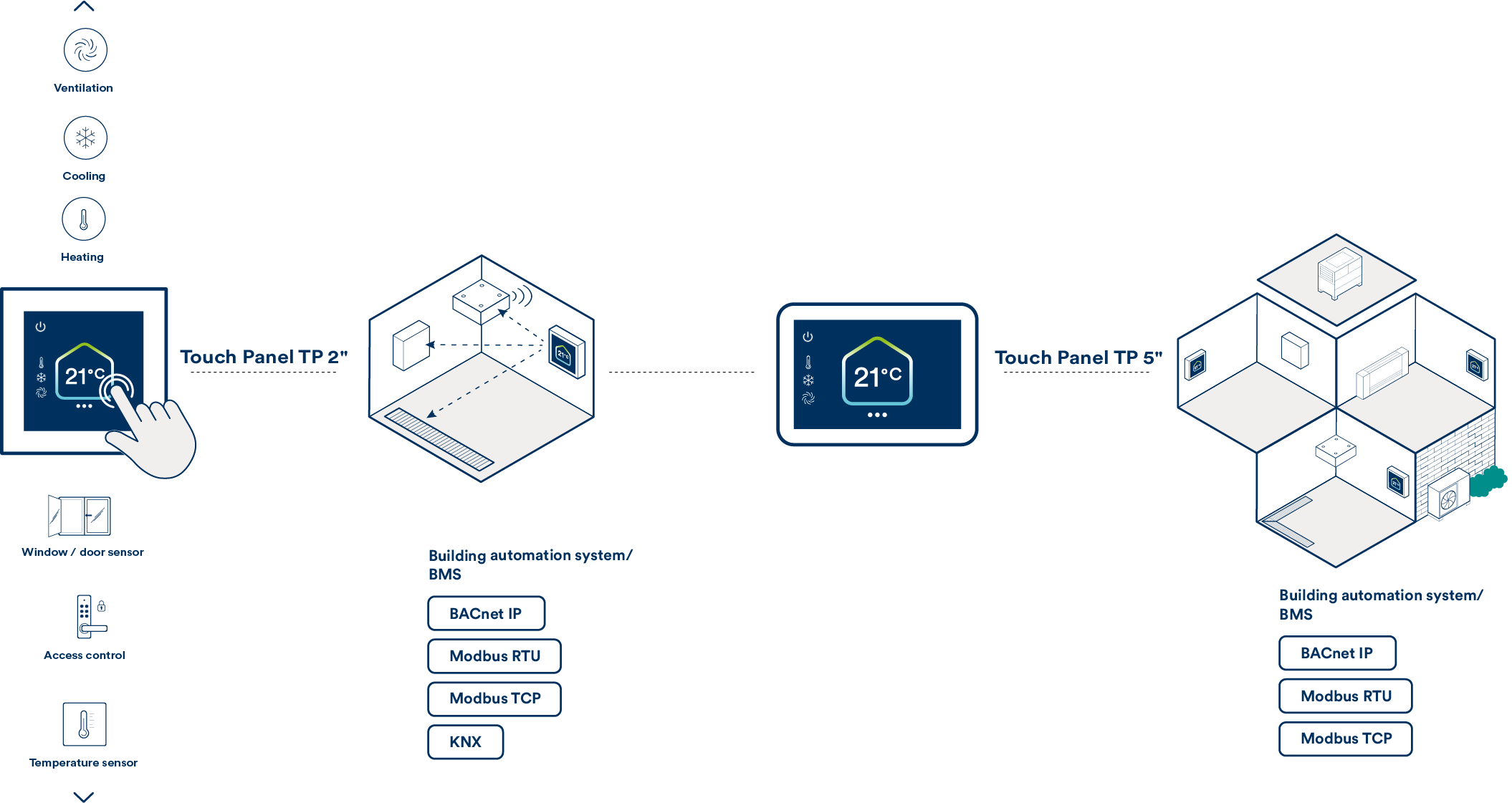

System Controller for centralized control
Our System Controller manages and operates up to 25 groups with a maximum of ten devices per group. With central time programs, setpoints, and status messages, you always have complete control over your entire installation.
Additional system and plant functions can be managed via the System Controller:
Control of ventilation systems
Switching between heating/cooling with control of system hydraulics and heat/cold generators
Integration into building automation systems using protocol licenses
